Level 2 NVQ Diploma in External Render—Manual and Machine Applied (Construction)

This qualification is primarily intended for people already carrying out manual and machine-applied rendering in a real working environment. It is suitable for workers who need formal recognition of competence across both solid-render application and the operation of projection equipment.

Suitable occupations and working arrangements may include:

• External renderers applying traditional, proprietary, synthetic or non-synthetic render systems.

• Machine-applied render operatives using diesel- or electrically powered spraying equipment.

• Projection plaster and render operatives responsible for loading, operating, cleaning and maintaining equipment.

• Solid plasterers whose work includes substantial external rendering responsibilities.

• Employed workers, self-employed tradespeople and workers operating through another genuine workplace arrangement that provides suitable assessment opportunities.

Learners normally work from given drawings, specifications, schedules, method statements and manufacturers’ instructions. They are expected to organise their own activities, select appropriate resources, complete work to the required standard and report technical problems that fall outside their authority.

The workplace must provide opportunities to demonstrate background preparation, manual render application, production of finishes and operation of projection equipment. Access only to labouring, internal skimming or isolated repair work is unlikely to provide the full evidence required.

Assessment requires regular access to genuine rendering work, suitable materials, functioning tools and machine-application equipment. A learner must be able to generate authenticated evidence from normal work rather than relying on exercises created solely for assessment.

Relevant workplace opportunities include:

• Reading drawings, specifications, work schedules, risk assessments, method statements and product information.

• Inspecting backgrounds for structural condition, dampness, surface defects, existing services, vents, flues and other features affecting the render system.

• Preparing external backgrounds such as brick, block, concrete, rubble-stone masonry, expanded metal lath or suitable external insulation surfaces.

• Handling and storing bagged materials, loose materials, liquids, beads, reinforcement, fixings, tools and ancillary equipment.

• Mixing and applying solid render to external walls, angles, reveals, soffits and bellcasts.

• Applying base coats, reinforcing mesh and stress patches where specified.

• Producing plain-faced work and other specified finishes such as dash, rough-cast, synthetic or non-synthetic render, or proprietary pre-cast finishes.

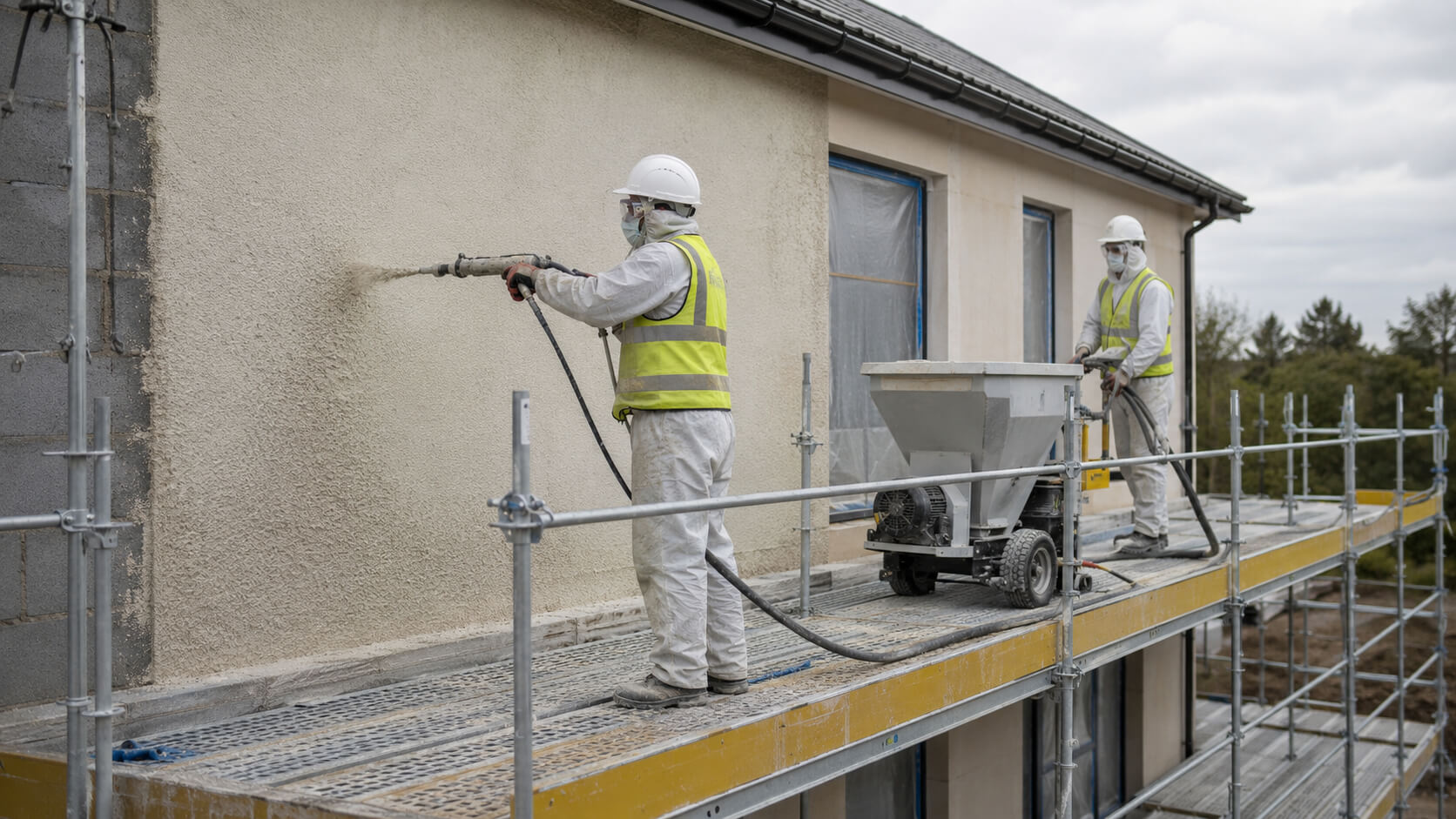

• Preparing, loading and operating diesel- or electrically powered plaster or render spray equipment.

• Applying machine-projected material to suitable vertical, horizontal, internal or external surfaces in accordance with the work specification.

• Cleaning and maintaining spray equipment, hoses, tools and associated components.

• Working safely from suitable access equipment or working platforms.

• Protecting adjacent surfaces, managing waste and responding to changing weather or site conditions.

Because all five mandatory units require workplace assessment and prohibit simulated skills evidence, a training bay or classroom exercise cannot replace evidence from real work. Employers or self-employed learners must ensure that the required range of manual and machine-applied activities will be available during assessment.

Successful learners can:

• Interpret drawings, specifications, schedules, method statements, risk assessments and manufacturers’ information.

• Identify unsuitable instructions, defective resources and background conditions that require reporting or specialist advice.

• Plan and sequence manual and machine-applied rendering work within the allocated programme.

• Select suitable render materials, reinforcement, beads, fixings, sealants, tools and ancillary equipment.

• Calculate material quantities, surface areas and reasonable allowances for wastage.

• Move, handle, position and store rendering materials and equipment without unnecessary damage or risk.

• Prepare external backgrounds and form the details needed around walls, reveals, soffits, angles and bellcasts.

• Mix, apply and finish solid render to the specified background and finish requirements.

• Prepare, load, operate, clean and maintain plaster or render projection equipment.

• Apply appropriate controls for work at height, construction dust, wet cement products, machinery, manual handling and site services.

• Protect completed work and adjacent surfaces from other trades, contamination and adverse weather.

• Inspect completed rendering for compliance with the specification, including relevant fixings, anchorage, weather resistance, vents and service interfaces.

• Minimise waste and comply with environmental and organisational disposal procedures.

• Communicate effectively with supervisors, customers, colleagues and other trades.

• Complete job records and report defects, delays or circumstances that could affect quality or the work programme.

Assessment determines whether the learner can consistently meet the occupational standards while undertaking real external-rendering work. An occupationally competent assessor uses a combination of methods to judge practical performance and confirm the associated technical knowledge.

Direct Workplace Observation

Direct evidence from normal workplace performance is the primary form of assessment. The assessor must observe sufficient activities to make a reliable judgement about the learner’s competence.

Observation may include:

• Inspecting and preparing external backgrounds.

• Selecting and mixing render materials.

• Applying base coats, reinforcement and finish coats manually.

• Forming angles, reveals, soffits and bellcasts.

• Producing specified external finishes.

• Setting up, loading and operating projection equipment.

• Cleaning and maintaining the spraying equipment.

• Applying safety controls, protecting surrounding work and managing waste.

Evidence must demonstrate consistent performance across the required scope rather than a single isolated task.

Portfolio Evidence and Work Products

A portfolio is used to organise evidence against every mandatory unit. Evidence must be authentic, current, relevant and clearly attributable to the learner.

Suitable evidence may include:

• Assessor observation reports.

• Photographs or authenticated recordings of rendering operations.

• Completed external-render work and related work-product records.

• Drawings, specifications and schedules used for the job.

• Risk assessments, method statements and product instructions.

• Background inspection and pre-installation check records.

• Material calculations, order lists and delivery information.

• Job cards, worksheets, progress records and timesheets.

• Equipment inspection, cleaning and maintenance records.

• Records of defects, variations or problems reported to supervisors.

• Witness testimony from an appropriately placed person.

Photographs and documents support assessment but do not, by themselves, prove practical competence.

Knowledge Confirmation and Professional Discussion

Underpinning knowledge may be confirmed through professional discussion, oral questioning, written questioning, assignments or other independently assessed evidence matched to the occupational standards.

The learner may be questioned about:

• Material selection, compatibility, defects and storage.

• Background condition and preparation requirements.

• Mixing, application and finishing methods.

• Use of reinforcement, beads, bellcasts, sealants and expanded metal lath.

• Machine set-up, safe operation, cleaning and maintenance.

• Work-at-height, dust, cement, machinery and manual-handling controls.

• Weather protection, curing and prevention of water penetration.

• Quality checks, reporting procedures and limits of authority.

• Requirements affecting traditional or historically significant buildings.

Witness Testimony and Prior Learning

Witness testimony can confirm activities that an assessor could not observe directly, provided the witness is suitably placed and the evidence is sufficiently detailed. It supplements rather than replaces the assessor’s judgement.

Relevant prior workplace learning may also be recognised. Previous experience must still provide valid evidence against the current units, assessment criteria and required range. Occupational experience alone does not result in automatic achievement.

Simulation and Completion Requirements

Workplace evidence of skills cannot be simulated for any of the five mandatory units. Artificially created rendering tasks, training-centre exercises and practice demonstrations cannot replace competent performance during genuine work.

To achieve the qualification, the learner must:

• Meet every learning outcome and assessment criterion in all mandatory units.

• Provide workplace evidence across the required activities and range.

• Demonstrate both manual solid-render application and machine-projection competence.

• Confirm the underpinning knowledge required for safe and technically correct work.

• Receive satisfactory assessment and quality-assurance decisions.

The qualification is assessed on a pass-or-fail basis rather than through graded results.

Achievement confirms competence at skilled-operative level within external rendering. Career development depends on the worker’s experience, the type of projects available and any additional qualifications required for a more specialised or supervisory role.

External Rendering Roles

Relevant roles may include:

• External renderer.

• Manual external renderer.

• Machine-applied external renderer.

• Projection plaster and render operative.

• Skilled rendering operative.

• Solid plasterer with responsibility for external render application.

The exact job title varies between employers. Some positions may combine external rendering with broader plastering or façade-finishing duties.

Advanced Craft and Specialist Development

Experienced workers may progress to a Level 3 NVQ Diploma in Plastering (Construction) where the solid-plastering structure includes producing complex external render finishes. Advanced work can involve two- and three-coat systems and finishes such as tyrolean, ashlar-jointed, scraped, textured, simulated-stone or decorative render.

Heritage plastering, conservation work and complete external wall insulation installation require additional occupational competence. This qualification recognises relevant render application but does not, by itself, confirm competence in every stage of an external wall insulation system or specialist conservation process.

Supervision and Site Responsibility

A renderer who moves into responsibility for coordinating people and work may consider an occupational work-supervision qualification. Progression to site supervision or construction management would require appropriate workplace authority, broader experience and achievement of the relevant higher-level qualification.

The qualification is officially mapped to the Blue Skilled Worker CSCS card for the occupations of External Renderer – Manual and External Renderer Machine Applied. The same full diploma includes the mandatory manual and machine-applied competence areas; these are not separate qualification pathways.

Achievement may support an application, but the qualification does not automatically issue or guarantee a card. The applicant must make a separate CSCS application and select the occupation that corresponds to their work.

Applicants must also pass the CITB Health, Safety and Environment Operatives test within the required validity period, normally the two years preceding the application, unless an officially approved alternative applies.

Card requirements, occupation mappings and application arrangements can change. Applicants should therefore confirm the current position through the official CSCS Card Finder before applying.
