Construction Trades and Building Envelope

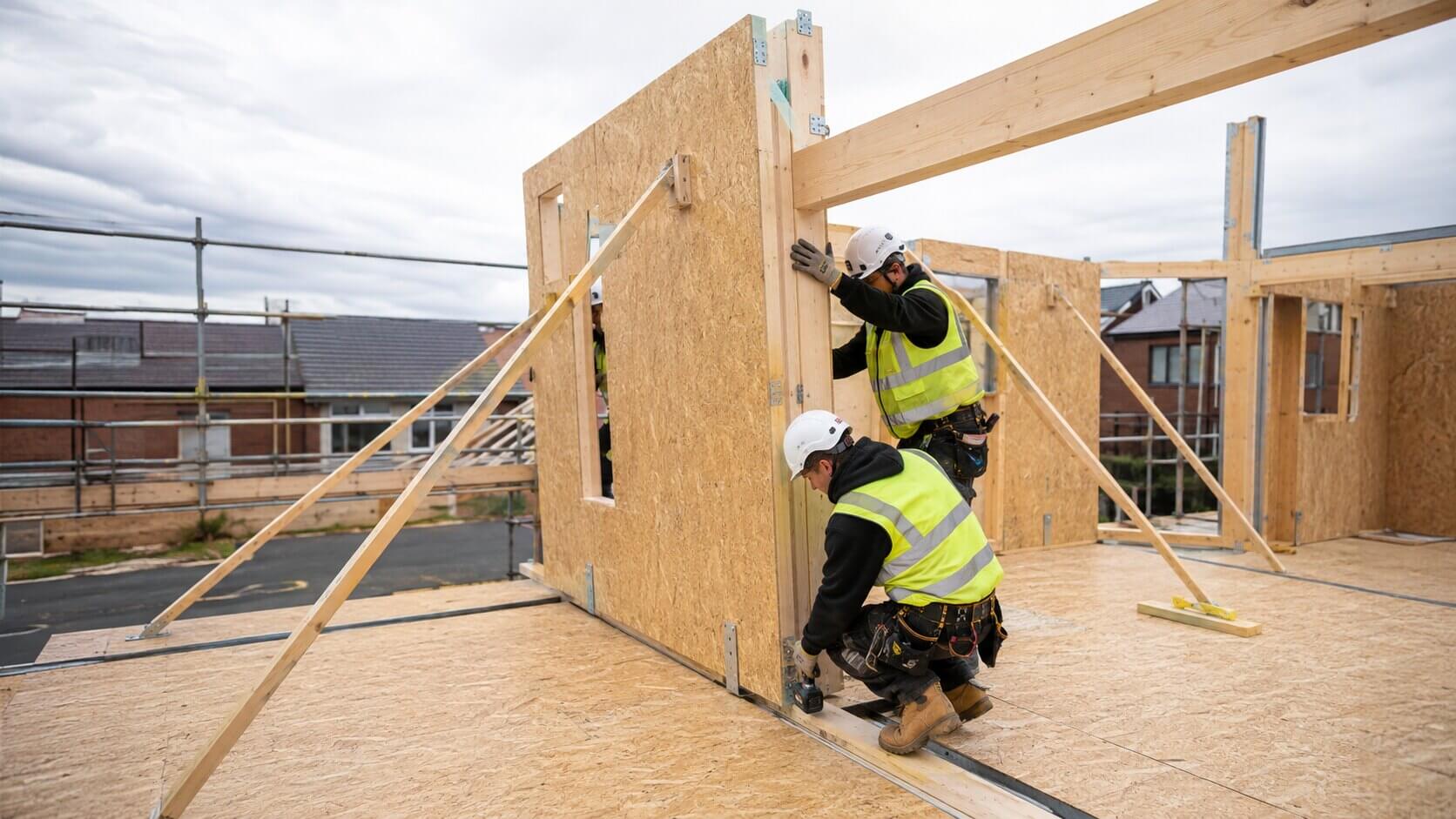

Level 2 NVQ Diploma in Construction Using Off-Site Manufactured Assemblies (Construction)

Prove workplace competence in erecting cold-formed steel frames or installing modular and portable buildings.

Overview

The Level 2 NVQ Diploma in Construction using Off-site Manufactured Assemblies (Construction) confirms occupational competence in assembling, erecting, installing, maintaining or dismantling building systems manufactured away from their final location.

It serves operatives working with cold-formed steel framing, modular buildings, portable cabins, temporary buildings and associated components. Depending on the pathway, practical work can include assembling steel frames, erecting walls and floors, forming roof structures, installing membranes and insulation, positioning modules, securing linkways, maintaining portable units and completing associated internal or external work.

This is a competence-based qualification assessed through real occupational activity. Learners must interpret drawings and specifications, follow risk assessments and method statements, select suitable materials and fixings, use tools and access equipment safely, protect manufactured components, meet installation requirements and coordinate their work with lifting teams and other trades.

For employers, the qualification provides structured evidence that an operative can perform their particular off-site assembly role safely, productively and to the required specification. It also distinguishes workers who erect pre-manufactured systems from those involved only in their factory manufacture, transport or general site handling.

Current Diploma structures centre on three occupational pathways: cold-formed steel frame erection, cold-formed steel frame assembly and erection, and modular and portable buildings. An earlier structure also listed structural precast concrete erection within the Diploma. Revised arrangements do not make that route universally available as part of the current Diploma, and applicants undertaking precast work should confirm the correct separately regulated qualification before registration.

Who It’s For

This qualification is intended primarily for existing construction workers who install or work with building assemblies that have been manufactured off site. Learners normally operate as members of an installation, erection, maintenance or dismantling team under agreed site procedures.

Suitable occupations include:

Cold-formed steel frame erectors
Light steel frame assembly and erection operatives
Modular building installers and dismantlers
Portable cabin and temporary-building operatives
Operatives maintaining modular or portable building units
Workers completing associated first-fix, lining, finishing or maintenance operations where these form part of their modular-building role

Learners may work on housing, commercial buildings, public-sector developments, modular accommodation, site compounds, temporary facilities or other projects using panelised, framed or volumetric construction systems.

The qualification is principally for people already performing the relevant work. A learner needs access to genuine installations, suitable components and fixings, manufacturer information, drawings, lifting arrangements, tools, access equipment and the range of activities required by the selected pathway.

Employment is normally necessary because the competence must be assessed in a real workplace. A subcontracted or self-employed arrangement may be suitable only where it provides authentic work, effective site supervision and sufficient evidence opportunities and is accepted by the assessment centre.

Pathways and Specialisms

The pathway must correspond to the learner’s actual occupation. Although the three current pathways share health and safety, productive-working and resource-handling requirements, their technical units assess different stages and types of off-site construction.

Cold-Formed Steel Frame — Erection

This pathway is for operatives erecting cold-formed or light steel components after manufacture or assembly. It covers the positioning and securing of walls, floors, joists, beams, decking and roof structures, together with supplementary frame finishes.

The learner must be able to erect systems from technical information, form specified connections, work safely at height and coordinate with mechanical lifting operations. This pathway does not require the separate frame-preparation and assembly unit.

Cold-Formed Steel Frame — Assembly and Erection

This pathway covers both preparing or assembling cold-formed steel frames and erecting the completed assemblies. It is appropriate where the learner’s job extends beyond site erection to assembling wall frames, floor frames, support structures or roofs.

In addition to erection and supplementary finishing work, the learner must demonstrate measuring, marking, aligning, cutting, fitting and securing frame components at an appropriate assembly workstation.

Modular and Portable Building

This pathway is for workers installing, dismantling, maintaining or decommissioning modular buildings, portable cabins, temporary units and their connection systems.

Learners select either a modular-building unit or a portable-cabin and temporary-building unit. They also complete relevant occupational options such as first fixing, plasterboard lining, basic plumbing, carpentry maintenance, coatings, surface preparation or the movement of suspended loads. Available options must reflect the learner’s genuine job and may vary between approved versions.

Workplace Requirements

Assessment requires sustained access to genuine off-site manufactured assembly work. Isolated classroom exercises or training rigs cannot replace evidence of occupational competence.

Depending on the pathway, the workplace must provide opportunities to work with:

Cold-formed steel frame components, walls, floors, beams, joists, decking or roof structures
Modular units, portable cabins, stacked units, temporary buildings or linkway systems
Specified brackets, connectors, fasteners, membranes, boards, insulation and finishing components
Drawings, schedules, digital information, method statements, risk assessments and manufacturer instructions
Hand tools, portable power tools, measuring equipment and appropriate ancillary equipment
Access equipment, working-at-height controls and fall-prevention systems
Mechanical lifting operations and suspended loads where these form part of the learner’s role
Suitable areas for unloading, storing, protecting, positioning and securing manufactured components
Quality inspections, defect reporting, environmental controls and completion procedures

The learner must have sufficient occupational responsibility to select resources, follow installation information, complete assigned work, recognise defects and report matters outside their authority. Evidence must also show cooperation with supervisors, lifting personnel, installers and other trades.

Learning Outcomes

Successful learners can:

Interpret drawings, specifications, schedules, digital information, manufacturer instructions, risk assessments and method statements
Identify unsuitable information, defective components or unsafe resources and follow reporting procedures
Organise work in accordance with the installation sequence, site programme and allocated responsibilities
Select the required quantity and quality of assemblies, components, fixings, consumables, tools and equipment
Move, handle, protect and store manufactured components without creating avoidable damage or instability
Establish and maintain safe working methods for manual handling, mechanical lifting, access equipment and work at height
Assemble or erect cold-formed steel frames where required by the selected pathway
Install, dismantle, maintain or decommission modular and portable buildings where required
Position, level, align, connect and secure assemblies to the specified requirements
Install applicable supplementary components such as membranes, insulation, fire stops, linings, sheathing or support fixtures
Coordinate with lifting personnel, plant operators and other occupations
Protect completed work against damage, contamination, weather exposure and interference from other activities
Check work against the specification and recognise when specialist knowledge or authorisation is required
Control waste, maintain an orderly work area and meet environmental responsibilities
Complete work within the allocated programme and report circumstances affecting progress or quality

Units

Every current pathway includes the same three general workplace units. Cold-formed steel pathways then use prescribed technical units. The modular and portable building pathway combines one principal installation unit with occupational options relevant to the learner’s work.

Additional or optional units are not interchangeable with mandatory pathway units. The precise selection must be agreed before assessment, and optional availability can differ between approved versions.

Follow legislation, site rules, safety notices and authorised working procedures
Use collective protection, personal protective equipment and respiratory controls correctly
Comply with risk assessments and safe systems of work
Recognise hazards involving equipment, substances, stored materials, services and changing site conditions
Stop work when faced with serious and imminent danger
Report hazards, incidents, emergencies and uncontrolled changes
Follow fire, evacuation, first-aid and accident procedures
Maintain welfare arrangements and dispose of waste correctly
Protect tools, equipment and the workplace through approved security procedures
Work responsibly without creating risks for other operatives or building users

Interpret instructions relevant to the work sequence
Communicate with supervisors, colleagues, lifting teams and associated trades
Organise assigned activities and resources
Maintain productive working relationships
Respect the responsibilities and needs of other occupations
Use resources efficiently and minimise unnecessary waste
Complete work within agreed timescales
Report delays, changes, defects and resource shortages
Confirm completed work and follow organisational handover procedures

Interpret information about handling, storage and movement requirements
Assess the characteristics, weight, size and condition of resources
Select appropriate handling methods and lifting aids
Use manual-handling techniques and lifting aids safely
Maintain stability and prevent damage during movement
Store assemblies, materials and equipment in designated locations
Protect components from weather, impact, distortion and contamination
Keep movement routes and storage areas clear
Dispose of packaging and waste responsibly
Report damaged, defective or unsuitable resources

Interpret drawings, digital models, schedules, specifications and manufacturer information
Check that components, fixings and equipment conform to the specification
Measure, mark out, position, fit, finish and secure frame assemblies
Erect the required range of ring beams, load-bearing walls, non-load-bearing walls, joists, floors, decking, beams, columns or roof structures
Form connections associated with steel-frame construction
Install floor and decking systems relevant to the project
Support mechanical lifting operations without exceeding personal authority
Work safely with access equipment and around plant
Protect erected frames and surrounding work from damage
Apply installation quality requirements and report non-conforming work

Interpret specifications for the required supplementary finish
Select compatible boards, membranes, insulation, ties, fixings and tools
Measure, mark, fit, position and secure the specified components
Install the applicable brick-tie system, breather membrane, vapour-control layer, fire stop, insulation, internal lining, sheathing board or cladding-support fixture
Maintain continuity at joints, openings and interfaces
Avoid damaging frames, membranes or adjoining work
Work safely at height and use access equipment correctly
Check the completed installation against technical and quality requirements
Coordinate with cladding, lining, fire-protection and other relevant trades
Report incompatible materials, damaged components or incomplete design information

Interpret drawings, schedules, digital models and assembly specifications
Set up a safe and suitable assembly workstation
Select steel sections, fixings, consumables and equipment
Measure, mark out, align, cut, fit, position and secure components
Assemble the required wall frame, floor frame, support structure or roof system
Distinguish load-bearing from non-load-bearing frame requirements
Check dimensions, alignment, connections and overall assembly quality
Operate and maintain hand tools and portable power tools
Protect finished frames and prevent distortion during handling or storage
Provide relevant information for digital construction records where required

Interpret drawings, schedules, method statements and manufacturer requirements
Select modules, sub-assemblies, connectors, fixings, seals and equipment
Measure, level, align, position and secure modular units
Install, dismantle or maintain single-storey and multi-storey systems
Form and secure linkway connections
Install relevant living-space sub-assemblies, staircases and access ramps
Support lifting operations and coordinate the positioning of modules
Seal modules against weather and complete internal and external joints and trims
Apply airtightness, ventilation, heat-loss and condensation requirements
Inspect completed work and report defects requiring specialist attention

Interpret installation instructions, risk controls and building information
Prepare the location and confirm access and lifting arrangements
Position, level and secure portable cabins or temporary units
Install, maintain or decommission single and stacked systems
Connect or remove linkways, staircases and access ramps
Support lifting operations and work safely around plant
Protect the unit envelope and maintain weather resistance
Address airtightness, ventilation, heat loss and condensation
Use and maintain appropriate tools and access equipment
Identify damage, unsafe conditions or work requiring a specialist trade

Interpret dimensions, setting-out information and fixing requirements
Select timber, boards, frames, linings, fixings and equipment
Measure, mark out, fit, position and secure components
Install the required range of door or window frames, door or hatch linings, floor coverings or decking, straight partitions and straight staircases
Form suitable joints and openings
Check line, level, position and secure fixing
Work safely with hand and portable power tools
Protect finished components and coordinate with follow-on trades

Diagnose visible faults and confirm the required repair
Measure, mark out, splice, fit, finish, position and secure replacement material
Repair or replace applicable frames, mouldings, doors and windows
Maintain ironmongery, guttering, downpipes, verge or eaves components
Replace glazing or sash cords where included in the work
Prime repaired areas where specified
Form sound joints and make good surrounding finishes
Protect occupied areas and other components during maintenance
Recognise work that exceeds non-structural authority and report it

Interpret maintenance information and establish the extent of the defect
Select compatible replacement materials, fixings, supports and tools
Measure, splice, fit, finish, position and secure repairs
Repair the required range of frames, mouldings, floor or roof coverings, glazing, ironmongery, guttering, fascias, soffits or bargeboards
Repair structural joists or rafters using specified temporary support
Identify load-bearing points before disturbing structural components
Prop and support existing work where required by the method
Make good associated finishes
Report design, stability or specialist problems outside the learner’s authority

Interpret appliance layouts and installation instructions
Select compatible copper or plastic pipework, outlets, taps, valves, fittings and sealants
Isolate services at the authorised point
Remove and install applicable sinks, basins, baths, toilets, bidets, shower trays or valves
Connect suitable kitchen, bathroom, bedroom or laundry appliances
Form approved pipe and fitting connections
Check positioning, secure fixing, sealing and basic operation
Protect the unit and occupants’ property during work
Report leaks, service defects or regulated work requiring a specialist

Interpret drawings, lining specifications and fixing patterns
Check vertical and horizontal datums
Confirm that the substrate is suitable
Select the correct board type, fixings, adhesive and equipment
Measure, mark out, cut, position and secure plasterboard
Fix boards to timber or metal framing or directly bond them to suitable solid backgrounds
Form openings and work around mechanical and electrical services
Follow the specified fixing regime and installation tolerances
Repair damaged lining and protect completed work

Assess boards, joints, angles and backgrounds before finishing
Select tapes, jointing compounds, primers, coatings or plaster materials
Measure, fit, apply, position and finish materials
Tape and joint by hand or approved mechanical methods
Form internal and external angles
Apply the specified primer, protective coat or top coat
Produce a skim-plaster finish where required
Control dust and use respiratory and extraction measures
Inspect the completed surface and correct permitted defects

Confirm that prepared internal or external surfaces are suitable
Select compatible water-borne or solvent-borne coatings
Protect adjoining surfaces, fittings and occupants
Mix, pour, dilute and load coatings as instructed
Apply coatings to trim, narrow runs and broad areas
Lay on, lay off and cut in to achieve the specified finish
Control drips, contamination and avoidable waste
Store materials safely and maintain brushes and rollers
Inspect coverage and finish against the working instructions

Establish access, ventilation and exclusion requirements
Protect surrounding surfaces and people by sheeting or masking
Prepare single-pack or two-pack coatings where specified
Assemble, set up and load the spray equipment
Monitor air and coating supply
Apply coatings to broad, linear or structural components
Use correct spray-gun techniques around angles and complex features
Check wet or dry film thickness where specified
Identify equipment or coating defects
Shut down, clean and store equipment safely

Establish access, lighting, atmospheric and containment requirements
Select suitable blast media and equipment
Protect people, adjacent work and the surrounding environment
Assemble, load, set up and test blast-cleaning equipment
Clean specified metal, concrete, stone or brick surfaces
Work on broad areas or complex structural components
Monitor surface profile, cleanliness and the effect of the blast media
Control exposure through suitable respiratory and collective protection
Shut down, dismantle and clean the system
Contain and dispose of spent media and removed material correctly

Interpret the lift plan, method statement and load information
Organise the activity with the lifting team
Inspect lifting accessories and confirm their certification and condition
Assess load weight, balance, centre of gravity and lifting points
Select and attach suitable accessories
Secure balanced, unbalanced, loose, bundled or other permitted loads
Check the travel route, clearances, exclusion zones and landing position
Use recognised hand signals or approved communication equipment
Guide, move and place suspended loads safely
Recognise rejection criteria, blind spots and crushing hazards
Stop the operation and report unsafe conditions or matters beyond personal authority

Assessment

Assessment measures the learner’s practical performance and underpinning knowledge against the units selected for their occupational pathway. The learner must satisfy every learning outcome and assessment criterion required by that structure.

Workplace Observation

An occupationally competent assessor observes the learner carrying out normal work. Depending on the pathway, observation may cover frame assembly, steel-frame erection, supplementary finishes, module positioning, securing portable units, dismantling systems or completing selected modular-building options.

Observation must demonstrate safe methods, correct resource selection, coordination with others, compliance with technical information and work completed to the required specification.

Portfolio Evidence

The learner compiles authenticated evidence showing competence across the required units. Relevant evidence may include:

Assessor observation reports
Drawings, specifications and work instructions used by the learner
Risk assessments, method statements and installation plans
Photographs of frame, module or portable-unit work at identifiable stages
Inspection, snagging, defect or completion records
Resource, fixing or component checks
Work programmes and progress records
Maintenance or decommissioning documentation
Records of toolbox talks, briefings or lifting coordination
Finished work and other identifiable work products
Witness testimony from occupationally knowledgeable personnel

Evidence must be attributable to the learner and sufficiently detailed to show what they personally did.

Questioning and Professional Discussion

Oral or written questioning and professional discussion confirm knowledge that may not be fully visible during observation. This can include interpreting technical information, frame connections, manufacturer requirements, lifting hazards, fall prevention, component defects, airtightness, condensation, fire stopping, environmental controls and defect-reporting limits.

Consistency of Performance

A single isolated task is not normally enough to demonstrate occupational competence. Evidence must show that the learner can perform safely and reliably under the conditions and across the activities required by the selected units.

Where an assessment criterion specifies different component types, systems, finishes, loads or work situations, the portfolio must contain evidence covering the required range.

Simulation and Prior Learning

The practical competence required by these units must be assessed in a real work environment. Workplace skills cannot be simulated.

Recognition of Prior Learning may be used where existing evidence is current, valid, authentic, reliable and sufficient. Previous experience alone is not automatically enough; it must be matched to the applicable assessment requirements.

Career Progression

The qualification supports continued employment and development in off-site and modern construction methods. Progression depends on the completed pathway, occupational experience and any additional training or authorisation required by the employer.

Relevant Occupational Roles

The qualification is directly relevant to roles such as:

Cold-formed steel frame erector
Light steel frame assembly and erection operative
Modular building installer or dismantler
Portable cabin installation and maintenance operative
Temporary-building operative
Modular unit finishing or maintenance operative

A learner should not claim a pathway or specialist activity that is absent from their certificate or supporting achievement record.

Further Development

With suitable experience, workers may progress towards lead operative, chargehand or team-coordination responsibilities. Supervisory duties normally require broader competence in organising people, monitoring work, planning resources and maintaining site standards.

Possible development routes include higher-level construction qualifications in occupational work supervision, site supervision or construction management. Workers may also undertake specialist training related to lifting operations, access equipment, fire-stopping systems, façade work, dry lining, coatings or other activities relevant to their employment.

Additional qualifications, cards, licences or employer authorisations may be required before operating particular plant, undertaking regulated services or controlling lifting operations.

CSCS Card

The cold-formed steel frame and modular-building pathways have clearly corresponding occupational mappings for the Blue Skilled Worker CSCS card. The mapped occupations include cold-formed steel frame erection, light steel frame erection and modular-building installation or dismantling.

The current occupational mappings use the broader description “Innovative/Modern Methods of Construction” for these pathways. Eligibility therefore depends on the pathway or endorsement recorded and its match to the occupation being applied for.

The qualification can support an application but does not automatically issue or guarantee a card. The applicant must apply separately, provide acceptable qualification evidence and have passed the CITB Health, Safety and Environment Operatives test within the required period.

Applicants should use the official Card Finder before applying because card titles, qualification mappings, evidence rules and test requirements can change. A pathway should not be used to claim an unrelated occupation, and no card eligibility should be assumed for an older structural-precast route without checking its current qualification and occupation mapping separately.

FAQs

These questions address the pathway, workplace and assessment issues that commonly arise with this qualification.

The verified generic qualification is a Level 2 NVQ Diploma. A separate Level 2 NVQ Certificate with a similar title exists for narrower occupational routes. Learners should check the full title and pathway before registration.

The erection pathway is for operatives positioning and securing steel-frame walls, floors, beams, decking and roofs. The assembly and erection pathway also requires competence in preparing and assembling cold-formed steel frames before erection.

Structural precast concrete appeared in an earlier Diploma structure, but it is not a universally available current Diploma pathway. A precast operative should confirm the current qualification specifically mapped to structural, flooring or cladding work rather than registering on the generic Diploma without an applicable pathway.

You need genuine workplace access to the activities required by your pathway. This may include a construction site, modular installation project, portable-building location or another authentic occupational environment. Training-centre practice cannot replace the required workplace evidence.

No. The applicable competence units require assessment in a real work environment, and workplace evidence of practical skills cannot be simulated. Knowledge can be confirmed through discussion or questioning, but the occupational tasks themselves must be demonstrated at work.

The selection must reflect the learner’s normal duties and available workplace evidence. The learner completes the appropriate principal modular or portable-building unit and the required number of relevant options. Units should not be selected solely because they appear easier to evidence.

Not automatically. Slinging and signalling must form part of the learner’s selected and assessed unit structure to be evidenced through the qualification. Employers may still require separate training, appointment or authorisation. Plumbing work is limited to the scope of the relevant unit and does not replace legal competence requirements for regulated services.

The current cold-formed steel frame erection, assembly and erection, and modular or portable-building pathways have clearly corresponding Blue Skilled Worker occupation mappings. Applicants must hold the appropriate pathway, pass the relevant Operatives health, safety and environment test and meet the current application requirements shown by the official Card Finder.

Application Form

Apply Now For This Course

An adviser will review your eligibility for Level 2 NVQ Diploma in Construction Using Off-Site Manufactured Assemblies (Construction) and reply within 1–2 working days.
