Civil and Specialist Construction

Level 2 NVQ Diploma in Associated Industrial Occupations—Passive Fire Protection (Construction)

A work-based qualification confirming competence in installing and applying passive fire protection systems on construction sites.

Overview

The Level 2 NVQ Diploma in Associated Industrial Services Occupations – Passive Fire Protection (Construction) is a competence-based qualification for people installing passive fire protection within buildings and other construction environments.

Passive fire protection helps maintain compartmentation, protect structural elements and limit the passage of fire and smoke. Depending on the learner’s occupational specialism, practical work may include installing fire-stopping systems, penetration seals, cavity barriers, fire-resisting walls, ceilings, ductwork protection, structural-steel protection or fire-resisting timber doorsets.

The qualification confirms that the learner can interpret drawings, specifications, method statements, risk assessments, manufacturers’ instructions and fire-performance documentation; select compatible materials; prepare substrates and openings; install or apply specified systems; and check the quality of completed work.

It is an occupational NVQ rather than a classroom-only programme. Competence must be demonstrated through genuine construction work under normal commercial conditions. This provides employers with evidence that the worker can complete relevant passive fire protection activities safely, productively and in accordance with the specified system requirements.

Multiple approved versions are currently available. They share the same occupational purpose and specialist installation options, but their rules of combination are not completely identical. Three core workplace units are common across current versions. Most versions also make access and working-platform competence mandatory, while another approved structure does not. At least two specialist passive fire protection units are normally required, subject to the rules of the selected approved version.

Older predecessor versions have been withdrawn or replaced. Learners should therefore confirm that they are being registered against a currently approved specification.

Who It’s For

This qualification is intended primarily for existing passive fire protection operatives who already undertake installation or application work and need to demonstrate occupational competence against nationally recognised standards.

It is relevant to people working as:

Passive fire protection installers
Fire-stopping and penetration-sealing operatives
Cavity barrier installers
Fire-resisting ductwork installers
Structural-steel fire-protection installers
Intumescent or non-reactive coating applicators
Fire-resisting wall and ceiling installers
Fire door and doorset installers

Learners generally work from supplied designs, specifications, schedules, certification and manufacturers’ installation instructions. The qualification does not establish competence to design fire-engineered solutions, alter tested systems without authorisation or approve work beyond the learner’s occupational responsibilities.

Suitable environments include new-build projects, refurbishment work, commercial and residential developments, industrial facilities and other premises where specified passive fire protection systems are being installed, repaired or replaced.

Because this is a work-based competence qualification, the learner normally needs employment, self-employment, a subcontracting arrangement or another genuine workplace arrangement that provides sufficient passive fire protection work. The available work must match the specialist units and endorsements being claimed.

Specialisms and Endorsements

The qualification does not impose one universal passive fire protection pathway. Specialist units are selected to reflect the systems and activities the learner genuinely undertakes at work. The selected combination must satisfy the rules of the approved version being completed.

Fire-Stopping and Compartmentation

This area includes sealing openings and service penetrations, installing flexible cavity barriers and constructing fire-resisting walls or ceiling systems. The work centres on preserving the specified fire and smoke performance at openings, voids, junctions and interfaces.

Fire-stopping endorsements may require evidence across several penetration or opening types, such as linear gaps, cable trunking, cable trays, metal pipes, service ducts, large blank openings or switch boxes. The precise endorsement combination should be confirmed before assessment begins.

Structural and Building-Service Protection

Learners may specialise in dry cladding applied to structural steel or in the installation and protection of fire-resisting ductwork.

Dry-cladding endorsements can distinguish between vertical, horizontal and diagonal applications. Ductwork endorsements may relate to kitchen extraction, smoke extraction, ventilation, pressurisation systems or car park ductwork. Availability and endorsement rules can vary between approved versions.

Protective Coatings

The coating options distinguish between thin-film reactive systems and non-reactive sprayed protection. These require different preparation, application, equipment and quality-control techniques.

Thin-film reactive work includes controlling and recording coating thickness. Non-reactive work may involve mixing materials to specified ratios or densities and using appropriate spray-pumping equipment.

Fire-Resisting Timber Doorsets

This specialism concerns the installation of timber fire door assemblies and doorsets in accordance with their fire-performance documentation. It includes frames, leaves, seals, ironmongery, fixings and the surrounding construction.

The unit assesses installation competence. It does not by itself establish competence in fire-door inspection, fire-risk assessment, system design or third-party certification.

Access and Working-Platform Endorsements

Where the access-platform unit forms part of the selected version, assessment normally covers the passive fire protection work context and specified types of access equipment. These may include ladders, crawler boards, platform steps, proprietary towers, trestle platforms, mobile scaffold towers or staging and podiums.

The required equipment combination depends on the applicable unit and qualification structure.

Workplace Requirements

The learner must have sustained access to genuine passive fire protection work that is sufficiently varied to meet every performance requirement in the chosen units.

Relevant workplace opportunities may need to include:

Receiving and interpreting drawings, schedules, specifications, method statements and risk assessments
Checking fire-performance documentation, certification and manufacturers’ installation instructions
Inspecting substrates, openings, structural elements and surrounding construction
Selecting compatible materials, components, fixings, sealants and installation equipment
Preparing, installing, applying, repairing or replacing the systems covered by the selected specialist units
Working safely at height or from access equipment where applicable
Protecting completed work and coordinating with other trades
Checking installation dimensions, seals, interfaces, fixings or coating thickness
Identifying non-compliant materials, unsuitable substrates, damage and unauthorised changes
Recording completed work before it becomes concealed
Reporting circumstances that could compromise the system’s specified fire performance

The workplace must provide the correct materials, tools, access equipment, protective equipment and technical information. Specialist work must be completed within the learner’s authority, training and site responsibilities.

Short training exercises can help develop knowledge or prepare a learner for assessment, but they do not replace the workplace evidence required to demonstrate occupational competence.

Learning Outcomes

A successful learner can:

Interpret drawings, work instructions, specifications, schedules, risk assessments, method statements and fire-performance information.
Recognise when information, resources, substrates or site conditions are unsuitable and follow the correct reporting procedure.
Plan and sequence passive fire protection work in coordination with the programme and other occupations.
Select materials, components, fixings, tools and equipment that conform to the specified system.
Calculate or determine relevant quantities, lengths, areas, volumes, thicknesses and likely wastage.
Apply health, safety, environmental and emergency controls appropriate to passive fire protection work.
Move, handle and store fire-protection materials without damaging them or affecting their suitability.
Prepare substrates, openings, structural elements or surrounding construction for the selected system.
Install, apply or repair the passive fire protection systems covered by the learner’s specialist units.
Maintain the integrity of tested or specified system details at joints, penetrations, supports and interfaces.
Use hand tools, portable power tools, access equipment and specialist application equipment safely.
Check completed work against specifications, manufacturers’ instructions and fire-performance documentation.
Protect finished work, control waste and maintain an orderly working area.
Complete workplace records and communicate defects, changes, delays or work outside personal authority.

Units

Current approved versions contain common core competence areas and a group of specialist passive fire protection units. The three units covering health and safety, productive working and resource handling are universally mandatory. Access and working-platform competence is mandatory in most, but not all, approved versions.

Specialist units are optional and must match the learner’s real duties. At least two specialist units are normally required, although the precise rule is determined by the selected approved specification. Not every centre will necessarily offer every unit or endorsement.

Follow workplace health, safety and welfare requirements, safe systems of work and authorised instructions.
Use required collective protection, personal protective equipment and respiratory protective equipment.
Recognise hazards arising from dust, coatings, sealants, manual handling, access equipment, existing services and changing site conditions.
Report hazards, incidents, unsuitable circumstances and serious or imminent danger through the correct channels.
Follow emergency, evacuation, fire and accident procedures and understand the appropriate use of fire extinguishers.
Maintain workplace welfare, environmental and security arrangements while preventing unauthorised access to work areas and resources.

Communicate appropriately with management, colleagues, customers and other occupations.
Interpret organisational information and plan an effective sequence of work.
Coordinate access to openings, structural elements, service penetrations and other work fronts.
Use labour, materials, equipment and time productively while avoiding unnecessary waste.
Complete relevant job cards, worksheets, resource records and timesheets clearly and promptly.
Maintain professional working relationships and apply equality and diversity principles when working with others.

Interpret product, technical and lifting information before moving or storing resources.
Select and use appropriate manual-handling techniques, lifting aids, containers and securing systems.
Move and store relevant materials such as boards, batts, wrapped products, components, liquids, tools and fragile items.
Protect products from moisture, contamination, deformation, physical damage or other conditions that could affect performance.
Segregate, store and dispose of packaging and waste in accordance with workplace and environmental procedures.
Identify damaged, incorrect or unsuitable materials and report them before installation or application.

Interpret method statements, risk assessments, specifications and manufacturers’ information for the selected access equipment.
Establish a suitable base and provide barriers, signs or other protection around the work area.
Move, position, erect, secure and check the required access or working platform.
Monitor equipment during use and dismantle, remove and store it safely when the work is complete.
Demonstrate competence with the required endorsed equipment types, such as ladders, platform steps, towers, trestle platforms or podiums.
Recognise limitations, defects and conditions requiring specialist access personnel or further authorisation.

Interpret installation drawings, schedules, specifications and fire-performance information.
Select suitable boards, noggins, soldiers, angles, channels, fixings, adhesives and installation tools.
Measure, mark out, cut, position, fix and finish cladding to the required dimensions and configuration.
Prepare, repair and install cladding in the endorsed vertical, horizontal or diagonal conditions.
Check substrate integrity, joints, fixings and interfaces with adjoining fire-protection systems.
Identify damaged cladding, incorrect components or installation defects and complete authorised repairs.

Check specifications, loading or thickness information, product data and environmental requirements.
Inspect and prepare substrates, including cleaning, abrading and repairing defective areas.
Select primers, fillers, tie coats, reinforcement, masking, base coats and top coats compatible with the specified system.
Prepare one-pack or two-pack products and apply coatings by spray, brush or roller as required.
Measure and control wet-film thickness and verify the resulting dry-film thickness.
Record substrate and ambient conditions, coating measurements, defects and completed repairs.
Protect the applied system during curing and apply the specified top coat without compromising compatibility.

Interpret ductwork layouts, specifications, method statements and fire-performance requirements.
Select prefabricated duct systems, protection boards or wraps, steel supports, fixings, adhesives and sealants.
Measure, mark out, cut, drill, fit, position and secure ductwork protection and associated components.
Install or repair the endorsed system, which may relate to extraction, ventilation, pressurisation or car park ductwork.
Verify that supports, inspection hatches and protective components are compatible with the required fire performance.
Check interfaces with walls, floors, ceilings and other fire-protection systems.
Report unsuitable supports, damaged components, conflicting services or changes that could invalidate the specified arrangement.

Interpret penetration details, service information, specifications and system certification.
Inspect opening dimensions, supporting construction, services and substrate condition before installation.
Select compatible batts, pillows, blocks, mortars, compounds, sealants, collars, wraps, stone wool, reinforcement and proprietary systems.
Measure, position, mark, drill, fix, shutter, mix, pour, cut, fit and finish the specified system.
Install fire stopping around relevant services and across the penetration types required by the unit endorsements.
Maintain correct depth, annular space, reinforcement, backing, support and surface finish.
Check both sides of the construction where required and record the work before it becomes concealed.
Report mixed or unsupported services, oversized openings, damaged substrates and arrangements outside the tested or specified detail.

Interpret layout drawings, schedules, specifications and fire-performance documentation.
Select compatible proprietary barriers, stone-wool products, steel angles, plates, channels, fixings and penetration-sealing materials.
Measure, position, mark, drill, fix, staple, stitch and secure barriers in the specified location.
Maintain continuity at junctions and seal appropriately around service penetrations.
Check the supporting construction and avoid gaps, compression errors, sagging or unsupported sections.
Repair or replace damaged cavity barriers using authorised system details.
Record completed work before cavities or finishes prevent further inspection.

Interpret drawings, specifications, fire-performance requirements and relevant junction details.
Select framing, steel angles, channels, studs, boards, insulation, fixings and fittings.
Measure, mark out, cut, fit, position, secure and finish the system.
Set out and erect framework walls or wall linings to the specified construction.
Form joints, openings, deflection-head details and provisions for second-fix items without compromising performance.
Check the substrate, system interfaces, board arrangement, fixings and required fire-resistant finish.
Recognise common failure points and report unauthorised changes, missing components or unsuitable surrounding construction.

Interpret reflected layouts, working instructions, support details and fire-performance specifications.
Select angles, channels, support systems, framing, boards, insulation, fixings and fittings.
Measure, mark out, cut, fit, position, secure and finish components accurately.
Set out, erect or repair the fire-resisting ceiling system to the supplied instructions.
Maintain required support spacing, board arrangement, joints, interfaces and access details.
Coordinate with services and other trades so that later work does not compromise the ceiling system.
Inspect the completed installation and report deviations, damaged components or unsuitable supporting construction.

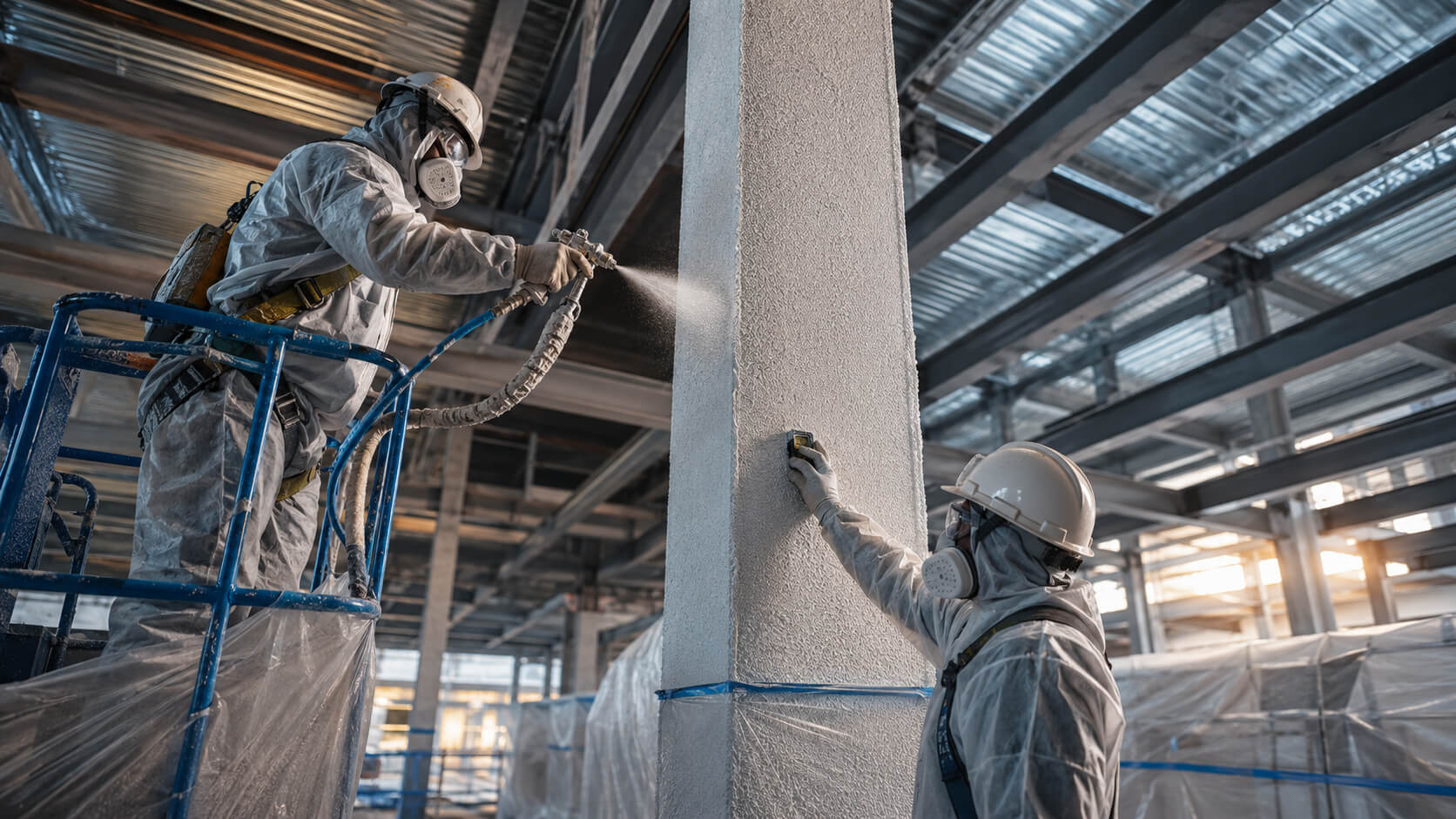

Check product information, specifications, environmental conditions and substrate suitability.
Select spray material, primers, reinforcement, fixings, masking and suitable pumping or spraying equipment.
Prepare concrete, steel or reinforcement to receive the specified coating.
Mix materials using the correct water ratio, mixing time and equipment speed.
Check material density and adjust the process only within authorised product requirements.
Apply the coating to the specified thickness and finish while controlling overspray and contamination.
Inspect the application and repair damaged, defective or incomplete areas in accordance with the product specification.

Interpret door schedules, installation instructions, fire-performance documentation and certification.
Check the opening, surrounding construction, door components and permitted configuration before installation.
Select the specified frames, leaves, fixings, intumescent protection, smoke seals, ironmongery and furniture.
Measure, mark out, drill, cut, position, fix, seal, fit and finish the doorset.
Install frames and leaves using the specified fixing and sealing arrangements.
Fit intumescent and cold-smoke seals and provide required protection around ironmongery.
Check that components remain undamaged and that unauthorised alterations have not affected certification.
Recognise the consequences of incorrect installation and report any condition outside the approved installation detail.

Assessment

Assessment establishes whether the learner can perform the selected passive fire protection activities safely and consistently in a real workplace. Each mandatory and selected optional unit must be achieved, including all applicable performance, knowledge and endorsement requirements.

Workplace Observation

A qualified, occupationally competent assessor observes the learner carrying out relevant work. Observation may include preparing substrates or openings, selecting materials, setting out, installing systems, applying coatings, using equipment and checking the completed installation.

Where work will become concealed, assessment must be planned so that critical stages can be observed or otherwise evidenced before closure.

Portfolio Evidence and Work Products

The learner compiles evidence demonstrating achievement across the required units. Depending on the selected specialisms, suitable evidence may include:

Annotated photographs or videos of preparation, installation and completed work
Marked-up drawings, door schedules or penetration records
Product labels, batch information and evidence of material compatibility
Fire-stopping, cavity-barrier or doorset installation records
Substrate and ambient-condition records
Wet-film and dry-film thickness measurements
Quality inspections, defect reports and authorised repair records
Method statements, risk assessments and permits relevant to the work
Job sheets, timesheets, delivery records and resource lists
Records of toolbox talks and coordination with other trades
Witness testimony from people with direct knowledge of the learner’s performance

Documents must relate to the learner’s own work. General policies, downloaded guidance or manufacturers’ literature do not demonstrate personal competence unless they are linked to evidence showing how the learner applied the information.

Knowledge Assessment and Professional Discussion

Knowledge is confirmed through questioning, professional discussion, written responses or other appropriate methods. The assessor may explore:

How specifications and fire-performance documentation are interpreted
Why compatible materials and approved system details are essential
The effects of incorrect openings, fixings, supports, seals or coating thicknesses
Health risks from dusts, coatings, sealants and spray materials
Work-at-height, manual-handling and environmental controls
Reporting procedures for damaged materials, unsuitable substrates and unauthorised changes
The limits of the learner’s authority and when specialist advice is required

Consistency, Authenticity and Prior Learning

Evidence must show that the required standard has been achieved consistently over an appropriate period, not through a single isolated task.

The assessor checks that evidence is valid, current, sufficient and genuinely attributable to the learner. Previous experience may be recognised where it can be authenticated and mapped to the current requirements, but experience alone does not remove the need for sufficient evidence of present competence.

Simulation Restrictions

Workplace performance evidence for these competence units cannot be simulated. Installation bays, demonstrations and training-centre exercises may support learning, but they do not replace evidence generated through genuine occupational activity.

Career Progression

The qualification supports continued employment and development within passive fire protection installation. Progression depends on the specialist units achieved, the worker’s wider experience, employer requirements and any additional system-specific training.

Skilled Installation Roles

Relevant roles may include:

Passive fire protection installer
Fire-stopping operative
Penetration-sealing installer
Cavity barrier installer
Structural-steel fire-protection installer
Fire-resisting ductwork installer
Intumescent coating applicator
Non-reactive spray-coating operative
Fire-resisting wall or ceiling installer
Fire door and doorset installer

The qualification records the competence demonstrated through the selected units. It should not be treated as evidence that every holder is competent in every role listed.

Specialist Development

Workers may broaden their competence by gaining experience and assessment in additional passive fire protection systems. Manufacturer training and scheme-specific instruction may also be required where products, contracts or third-party certification arrangements impose additional conditions.

Supervision and Inspection

Experienced installers may progress towards occupational work supervision or construction site supervision after developing the necessary planning, coordination, monitoring and leadership competence.

Progression into passive fire protection inspection is also possible through further experience and an appropriate higher-level inspection qualification. Installation competence alone does not establish independence or competence as an inspector, fire-risk assessor or fire engineer.

CSCS Card

The exact generic qualification is officially mapped to the Passive Fire Protection occupation for the CSCS Blue Skilled Worker card.

Completing the qualification may therefore support an application for that card. The qualification does not automatically issue a card or guarantee approval. The applicant must make a separate application and provide the required evidence.

The official occupation mapping currently requires the CITB Health, Safety and Environment Operatives test. The relevant test must normally have been passed within the period accepted by the card scheme at the time of application, unless an approved alternative applies.

Applicants should use the official Card Finder immediately before applying to confirm:

That their exact qualification remains accepted
That Passive Fire Protection is the correct occupation
That the Blue Skilled Worker card remains the applicable card
Which health, safety and environment test is required
What qualification and identity evidence must be submitted
Whether any requirements have changed since the qualification was completed

FAQs

These questions address the structural, workplace and occupational issues that commonly arise when considering this passive fire protection qualification.

No. The learner completes core workplace units and specialist units matching their actual job. Someone assessed in fire stopping and cavity barriers is not automatically qualified in fire doors, ductwork protection or sprayed coatings.

Current structures normally require at least two specialist passive fire protection units. The exact rule can differ between approved versions, so the required combination must be confirmed when the learner is registered.

No. It is mandatory in most current approved versions, but another current structure uses three core mandatory units without making the access-platform unit part of the qualification. Where it is included, the required equipment endorsements must also be achieved.

No. It is a workplace competence qualification. The learner needs genuine occupational opportunities to carry out the selected passive fire protection activities and generate valid evidence under normal working conditions.

They can support training and preparation, but workplace evidence of competence cannot be simulated. The assessed performance must come from genuine passive fire protection work.

Assessment should be planned before the work is covered. Evidence may include direct observation, clearly sequenced photographs or video, installation records, marked drawings, product information and witness evidence. The assessor must still be satisfied that the evidence is authentic, sufficient and attributable to the learner.

No. It establishes competence in installing fire-resisting timber door assemblies and doorsets to specified instructions. Inspection, fire-risk assessment, design and independent certification require different competence and may require further qualifications or experience.

The qualification is mapped to the Passive Fire Protection occupation for the Blue Skilled Worker card. A separate application is required, together with the applicable CITB Health, Safety and Environment Operatives test or an accepted alternative. Current requirements should be checked through the official Card Finder before applying.

Application Form

Apply Now For This Course

An adviser will review your eligibility for Level 2 NVQ Diploma in Associated Industrial Occupations—Passive Fire Protection (Construction) and reply within 1–2 working days.
